Double 16 Pin male And Female Connector Heavy Duty

Features

Number of contacts	32
Rated current	16A
Rated voltage	500V
Rated impulse voltage	6KV
Pollution degree	3

Get a Quote PDF Datasheet

Product

Relevant News

How are the specifications of Nylon Cable Tie divided?

Nylon Cable Tie is a long strip made of nylon material with a locking device at one end. The wi...
2024-11-08
Nylon Cable Tie The right assistant for cable management.

In our daily life and various industrial scenarios, we often encounter situations where we need...
2024-10-10
What are the significant advantages of nylon cable ties compared to ordinary plastic cable ties?

1. Anti-aging abilityNylon cable ties: They have good anti-aging ability, can delay the aging p...
2024-08-22
What are the characteristics and uses of Stainless Steel Tie

Stainless steel ties, also known as stainless steel cable ties or stainless steel zip ties, are...
2024-07-04

Product Details

Contactor 032F series

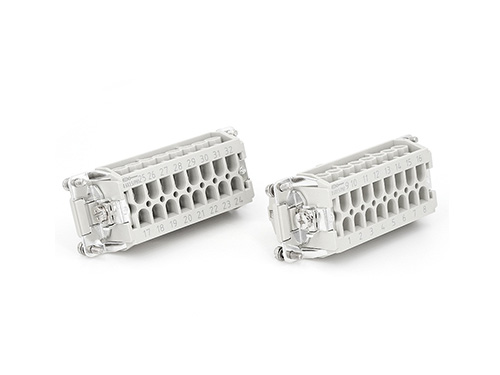

Double 16 Pin male And Female Connector Heavy Duty 32 pin screw terminal

Number of contacts	32
Rated current	16A
Rated voltage	500V
Rated impulse voltage	6KV
Pollution degree	3
Or
Rated voltage Acc.to UI CSA	600V
Insulation Resistance	≥1010Ω
Material	Polycarbonate
Limiting Temperatures	-40℃～+125℃
Flammability Acc,To UL94	V0
MecHEnical Working Life-mating Cycles	≥500
Material	Copper
Surface	Silver plated / gold plated
Contact Resistance	≤1mΩ
Wire Gauge	0.14-4mm²
AWG	26-14
Tightening Torque	0.5Nm

32 PIN male heavy duty connector

32 PIN male industrial heavy duty connectors
